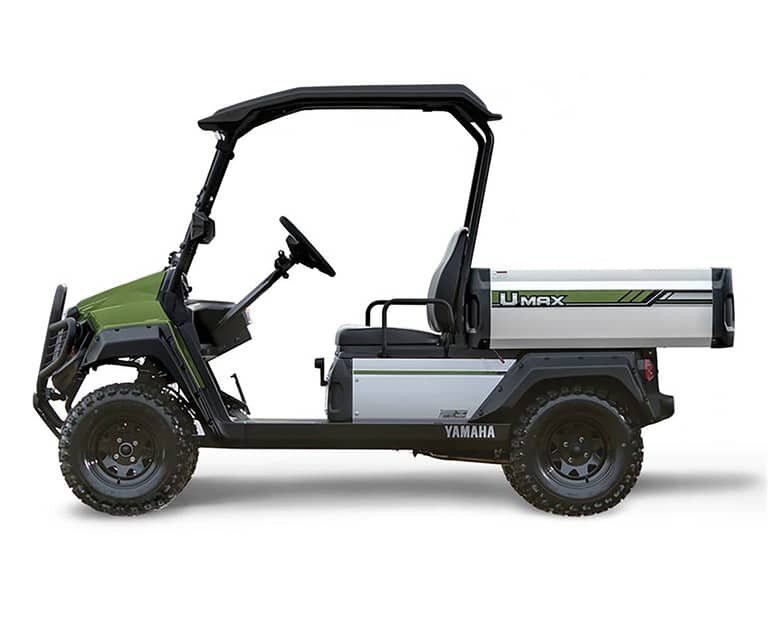

Yamaha UMAX Rally Evergreen Metallic - $17749.00 Includes Freight and PDI - 0% Financing Available!!
Overview
Haul it all with the UMAX Rally combining premium power and performance to handle daily tasks with ease. This work-ready PTV features a dump bed, front brush guard, capable 23” tires and a receiver hitch with plenty of towing power.
Specifications
Category Name
Personal Transportation Vehicles
engine
Engine
ENGINE
Yamaha-built 402 cc, Low Emission Single Cylinder 60° Incline OHV
OIL CAPACITY
1.1 L (1.16 U.S. quart, 1100 cc), Yamalube 10W-30
AIR CLEANER
Two-stage, urethane-foam pre-cleaner, and high-capacity pleated paper cartridge
COOLING SYSTEM
Forced Air
FUEL SYSTEM
Electronic fuel injection
STARTING SYSTEM
Starter generator with pedal start system
FUEL TANK CAPACITY
20 L (5.2 US Gal)
chassis
Chassis
FRAME
HybriCore™ Chassis features a robotic welded automotive ladder-style steel frame.
BODY
Custom-formulated thermoplastic olefin painted with a two-part top coat of high-luster automotive-grade polyurethane
STEERING
Self-compensating double reduction helical rack-and-pinion
FRONT SUSPENSION
Tru-Trak II™ fully independent automotive-style strut suspension
REAR SUSPENSION
Unit swing arm with dual rate coil springs over hydraulic shock absorbers
BRAKES
Self-adjusting mechanical, front and rear wheel drum brakes
highlights
HIGHLIGHTS
Bring everyone along with premium rear facing bucket seats or tackle your to-do list with 200 lb of added storage capacity when the seats are folded down.
Added storage between the front and rear seats to carry tools, equipment, groceries or whatever else you need to take along.
A dash designed for today’s professional, complete with cup holders, and fuel/battery gauge.
A convenient side-fill gas tank makes for a quick, efficient fill up.
Sizable storage area designed for convenience.
critical data
Critical Data
Length
3115 mm (122.6 ")
Width
1360 mm (53.5")
Height
No sun top: 1288 mm (50.7") // With sun top: 188 mm (74.0")
Wheelbase
1965 mm (77.4")
Turning radius
4000 mm (4.0 m)
Ground Clearance
150 mm (5.9" )
Fuel Capacity
20 L (5.2 US Gal)
Weight
Curb Weight (with Sun Top, Battery, Oil, Gasoline) 501 kg (1105 lb)
Bed Capacity
680.38 kg (1,500 lb)
Towing Capacity
680.38 kg (1,500 lb)
Warranty
Colour(s)
GLACIER / CORAL RED METALLIC / EVERGREEN METALLIC
features and benefits
FEATURES AND BENEFITS
KEY FEATURES 402 cc, low-emission single cylinder 60° incline OHV Independent front suspension with cradle-smooth rear suspension Convertible, fold-down rear facing bucket seats adds 2 extra seats or 200 lbs of added storage capacity. Rear storage basket between front and rear seats Clear polycarbonate fold-down windshield Under hood storage compartment Capable 23” tires Front brush guard and fender flares
ENGINE
ENGINE TYPE. Yamaha-built 402 cc, Low Emission Single Cylinder 60° Incline OHV
OIL CAPACITY. 1.1 L, 1100 cc (1.16 U.S. quart), Yamalube 10W-30
AIR CLEANER. Two-stage, urethane-foam pre-cleaner, and high-capacity pleated paper cartridge
COOLING SYSTEM.
FUEL SYSTEM. Electronic fuel injection
STARTING SYSTEM. Starter generator with pedal start system
FUEL TANK CAPACITY.
Chassis
FRAME. HybriCore™ Chassis features a robotic welded automotive ladder-style steel frame
BODY. Custom-formulated thermoplastic olefin painted with a two-part top coat of high-luster automotive-grade
STEERING. Self-compensating double reduction helical rack-and-pinion
FRONT SUSPENSION. Tru-Trak II™ fully independent automotive-style
REAR SUSPENSION. Unit swing arm with dual rate coil springs over hydraulic shock absorbers
BRAKES.
Category Name
Personal Transportation Vehicles
Rear Facing Folding Seats
Rear Storage Basket
Automotive-Style Dash
Side-fill gas tank
Under-hood storage compartment
